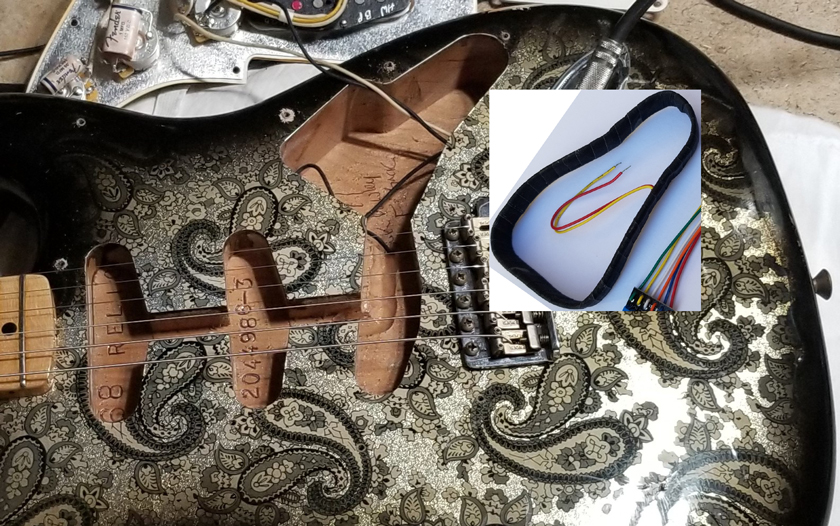

The latest Strat hum canceling CVNCS IN S models are for permanent installation under the guitar pickguard. It is “pre-shaped to fit” inside of the guitar control cavity of Fender Stratocaster or any other similar style guitar with 1, 2 or 3 single coil pickups.

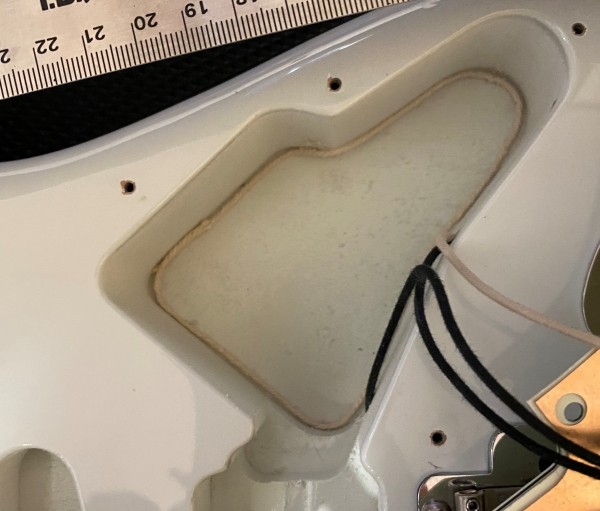

CVNCS IN S #1 is about 12.1/8″ / 308mm; CVNCS IN S #2 is about 12.1/2″ / 318mm; in circumference. Please
Note: #1 CVNCS IN S model will perfectly work on #2 measured cavity circumference!
Contact us first to discuss or if you want to build a custom CVNCS IN S for any special single coil pickups or control cavity circumference.
CVNCS IN S for Strat
$295.00 – $300.00
Description
ILITCH Cavity Noise Canceling System CVNCS IN S for Fender Stratocaster or similar STRAT style guitar
Enjoy your play and tone without the hum
One example for fit: CVNCS IN S #2 is about 12.1/2″ / 318mm; in circumference
STRENGTH SELECTING:
1. Find out from the pickups brand and model spec the alnico rod magnets type and the DC resistance in KΩ.
2. You can measure the DC resistance of the pickups (using a digital multimeter at 20 KΩ range or automatic) in the following way:
= Plug in a normal guitar cable into the guitar output jack
= Put Volume Tone pots at their Max position
= Go to position 1 – Bridge pickup only
= Measure the DC resistance between Sleeve and Tip at the other side of the guitar cable Jack
= Do same for the other pickups and write down the readings
Then you select the CVNCS IN S STRENGTH you need
VNT – Strength 8 – for Alnico polepiece pickups 5-6.5 KΩ resistance
STD – Strength 10 – for Alnico polepiece pickups 6-8 KΩ resistance
SOUND:
Audio MP3 files recorded with a close located Audix mic, AC 30 – all tube amplifier and Fender Stratocaster guitar equipped with three Strat style single coil pickups. Pickup recorded – Bridge only
VIDEO:
